Control units for electropermanent magnetic chucks EP-CU

When to choose EPCU electropermanent magnet controllers:

The advanced EPCU series units are used to magnetize all Walmag EP chucks. They offer additional features compared to the standard LCC units. Available versions are EPCU 10, 20, 40 SW/DW.

Advantages:

Microprocessor-controlled de/magnetization of workpiece and chuck
Possibility to control up to 4 magnetic chucks at the same time
Optional RM remote control
Overheating protection (safety delay between cycles)

Buy

Related products

Electro-permanent magnetic chuck for grinding Grindmaster
Magnetic chuck for a very wide range of workpieces.

Electro-permanent circular magnetic chuck Circu EP
The electro-permanent chuck suitable for surface grinding and turning.

Magnetic chuck for milling Mastermill 70
Electro-permanent magnetic chuck Mastermill 70 for milling and drilling

Mastermill variable electro-permanent magnetic chucks
Electro-permanent magnetic chuck for milling.

This product can be rented. Just create an inquiry and check the rent box.

Are you not sure that this product is the right choice? Send us your inquiry and our representatives will be happy to advise you.

Display as table

Catalog number	Number of channels	Height [mm]	Availability (approximate)	Price without VAT (valid for EU only)
EPCU10DW00	10DW	0	in stock	~~1,456 EUR~~ 1,456 EUR	x
EPCU10DW54U19	10DW	150.00	on request	~~1,770 EUR~~ 1,770 EUR	x
EPCU10SW00	10SW	0	in stock	~~976 EUR~~ 976 EUR	x
EPCU10SW54U19	10SW	150.00	on request	~~1,289 EUR~~ 1,289 EUR	x
EPCU20DW00	20DW	0	in stock	1,895 EUR	x
EPCU20DW54URM	20DW	200.00	on request	~~2,360 EUR~~ 2,360 EUR	x
EPCU20DW54U19	20DW	0	in stock	~~2,209 EUR~~ 2,209 EUR	x
EPCU20SW00	20SW	0	in stock	~~1,456 EUR~~ 1,456 EUR	x
EPCU20SW54RM	20SW	150.00	on request	~~1,921 EUR~~ 1,921 EUR	x
EPCU20SW54U19	20SW	0	in stock	~~1,770 EUR~~ 1,770 EUR	x
EPCU40DW00	40DW	0	in stock	~~3,368 EUR~~ 3,368 EUR	x
EPCU40DW54RM	40DW	200.00	on request	~~3,833 EUR~~ 3,833 EUR	x
EPCU40DW54U19	40DW	0	in stock	~~3,681 EUR~~ 3,681 EUR	x
EPCU40SW00	40SW	0	in stock	~~2,316 EUR~~ 2,316 EUR	x
EPCU40SW54RM	40SW	200.00	on request	2,781 EUR	x
EPCU40SW54U19	40SW	0	in stock	2,629 EUR	x

Basic functions of the EPCU control unit:

possibility to control up to 4 magnetic chucks at the same time
microprocessor controlled de/magnetization of workpiece and chuck
magnetization status check – connection to the machine safety contact
possibility of connection with a PLC machine
overheating protection (safety delay between cycles)

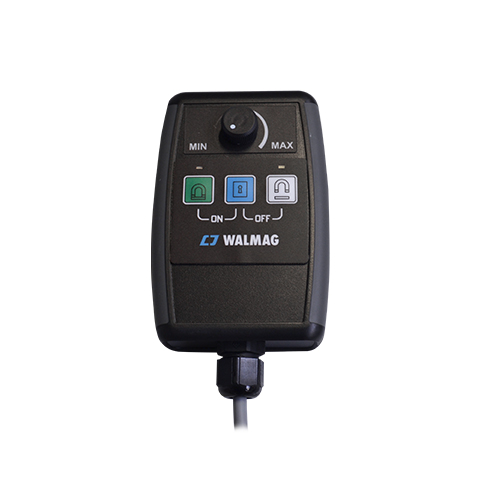

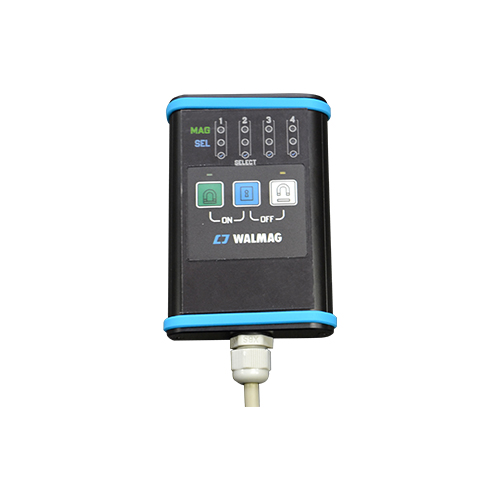

control by the U19 wired remote control with clamping force adjustment (optional RM remote control with selection of sections and magnetizing groups)

Other functions of the EPCU:

possibility to adjust the demagnetization cycle according to the material workpieces
full demagnetization of workpiece and chuck – for uncompensated EP chucks
networking support (connecting multiple units and fixtures in large assemblies)
remote connection function (demagnetization settings, firmware update, diagnostics)
magnetization credit function gives the possibility to shorten the safety delay between cycles
