Electro-permanent circular magnetic chuck Circu EP


When to use Circu EP magnetic chuck:

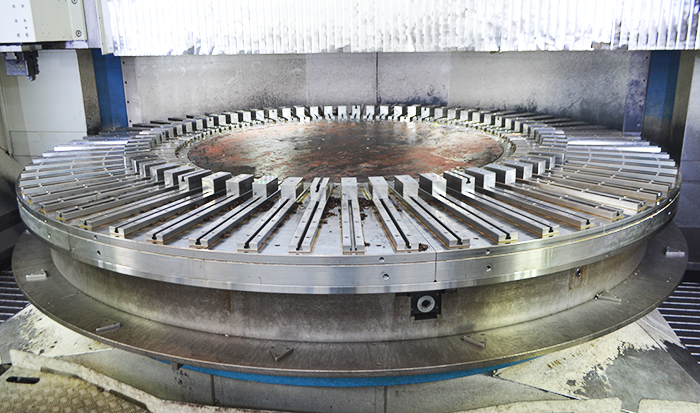

Due to its radial pole layout, the Circu EP magnetic chuck is suitable for grinding or turning round and cylindrical workpieces. Thanks to the electro-permanent technology, it is not necessary to be permanently connected to the electric current.

Advantages:

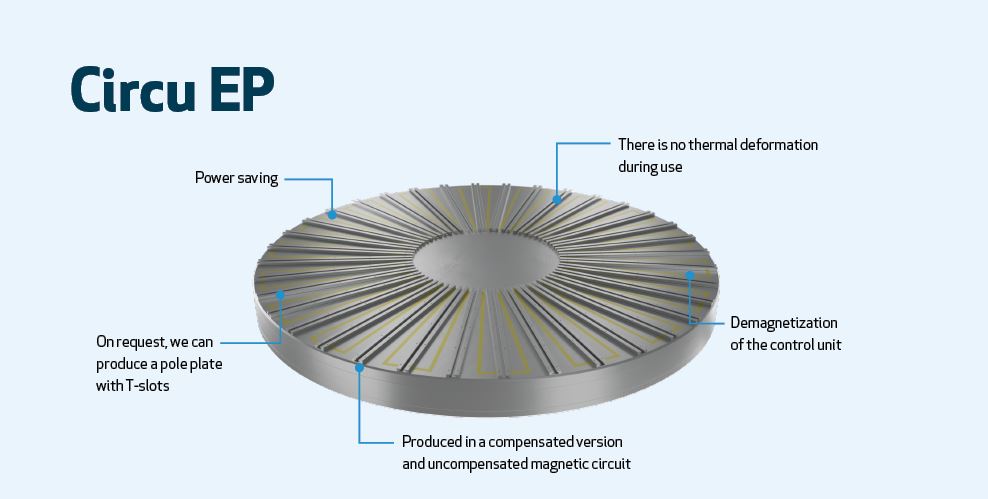

  • Energy saving technology
  • T-slots top plate on request
  • Delivered in version with compensated or non-compensated (full demagnetization) magnetic system
  • No heat deformation during use
  • Demagnetization by means of the chuck´s control unit
Buy

Related products

Help

This product can be rented. Just create an inquiry and check the rent box.

Help

Are you not sure that this product is the right choice? Send us your inquiry and our representatives will be happy to advise you.

Catalog number Chuck dimension Height [mm] Availability (approximate) Price without VAT
(valid for EU flag EU only)
EP400
400mm 90.00 on request
On request
EP500
500mm 90.00 on request
On request
EP600
600mm 100.00 on request
On request
EP700
700mm 100.00 on request
On request
EP800
800mm 100.00 on request
On request
EP1000
1000mm 100.00 on request
On request
EP1200
1200mm 110.00 on request
On request
EP1500
1500mm 120.00 on request
On request

Detailed description:

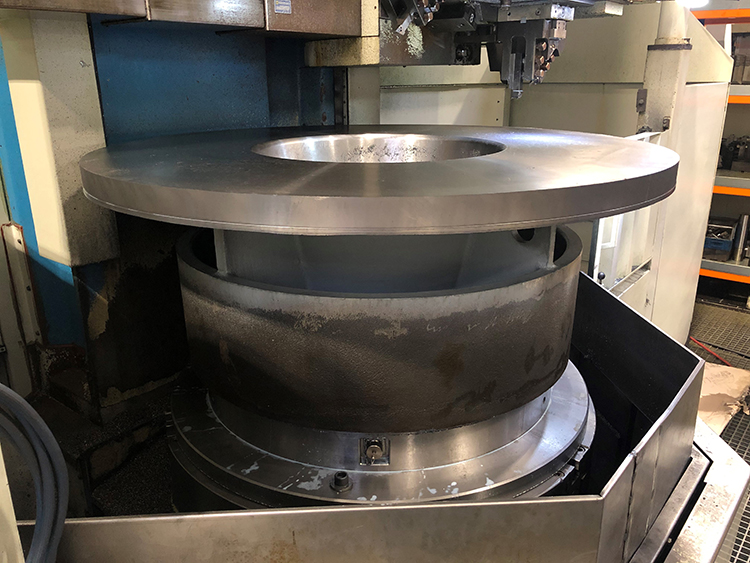

The Circu EP is an electro-permanent magnetic chuck designed for installation on rotary tables of vertical grinders for clamping of tool and hardened steels and for heavy duty turning operations. The radial layout of the individual poles is suitable for work with circular or cylindrical shapes such as bearing rings, circular rings, bushings, etc. Using the control unit, the holding force can be controlled in several steps and fast and efficient demagnetization of workpieces can be performed. Thanks to the electro-permanent technology used there is no need for permanent connection to the mains. This results in high efficiency in operation and this also ensures the highest possible clamping accuracy.

Important parameters:

  • Technology: Electro-permanent
  • Poles: Radial
  • Regrinding limit: 8 mm
  • Guarantee: 2 years

Additional information:

High holding force for clamping during the ultimate heavy duty machining, drilling, and turning operations. Available with pole plate equipped with T-slots for mounting pole extensions. The control unit can be programmed for different types of material to achieve maximum strength and effective demagnetization after machining. At the same time, it is possible to adapt the force to clamp even thinner parts without any deformation. The chuck can be connected via the slip ring in the machine tool spindle, or through the connector located directly on the magnetic chuck.

Use:

  • circular grinding, roughing, turning
Výkres Circu EP
Catalog number D (mm) H (mm) Weight (kg) Voltage (V)
Circu EM 400 400 90 76 170/340
Circu EM 500 500 90 120 170/340
Circu EM 600 600 100 195 170/340
Circu EM 700 700 100 265 170/340
Circu EM 800 800 100 365 170/340
Circu EM 1000 1000 100 550 170/340
Circu EM 1200 1200 110 990 170/340
Circu EM 1500 1500 120 1550 170/340
