Neomicro permanent magnetic chuck for surface grinding


When to choose a Neomicro magnetic chuck:

The Neomicro permanent chuck with an exceptional holding force combines high quality with a favourable price. It is simple and low maintenance clamping device.. It is suitable primarily as an accessory to grinders intended for precise surface grinding of very small and thin parts up to large workpieces. It is suitable for electrical discharge machining.

Advantages:

  • Solid and waterproof design
  • High stability and accuracy of the chuck during surface grinding
  • Possibility to clamp even the thinnest parts
  • Long life span thanks to the fixed top plate, which can be reground many times Easy operation and low maintenance
  • Durable switching mechanism
Buy

Related products

Help

This product can be rented. Just create an inquiry and check the rent box.

Help

Are you not sure that this product is the right choice? Send us your inquiry and our representatives will be happy to advise you.

Catalog number Parameters Height [mm] Weight [kg] Availability (approximate) Price without VAT
NEOC70140 70x140 mm 49,00 6,00 6 - 7 weeks
375 EUR
x
NEOC100175 100x175 mm 49,00 7,10 1 - 4 days
440 EUR
x
NEOC100200 100x200 mm 49,00 8,15 5 - 6 weeks
487 EUR
x
NEOC100250 100x250 mm 49,00 10,55 5 - 6 weeks
518 EUR
x
NEOC130255 130x255 mm 49,00 13,30 1 - 4 days
565 EUR
x
NEOC150150 150x150 mm 51,00 9,60 5 - 6 weeks
536 EUR
x
NEOC150250 150x250 mm 51,00 16,00 1 - 4 days
593 EUR
x
NEOC150300 150x300 mm 51,00 19,10 1 - 4 days
662 EUR
x
NEOC150350 150x350 mm 51,00 22,25 5 - 6 weeks
685 EUR
x
NEOC150400 150x400 mm 51,00 25,45 5 - 6 weeks
822 EUR
x
NEOC150450 150x450 mm 51,00 28,70 1 - 4 days
866 EUR
x
NEOC200400 200x400 mm 51,00 33,45 1 - 4 days
981 EUR
x
NEOC200450 200x450 mm 51,00 36,55 5 - 6 weeks
1,295 EUR
x
NEOC200500 200x500 mm 51,00 42,10 5 - 6 weeks
1,373 EUR
x
NEOC200600 200x600 mm 51,00 49,75 1 - 4 days
1,511 EUR
x
NEOC250500 250x500 mm 56,00 57,00 5 - 6 weeks
1,582 EUR
x
NEOC300500 300x500 mm 56,00 67,00 1 - 4 days
2,037 EUR
x
NEOC300600 300x600 mm 56,00 80,25 1 - 4 days
2,385 EUR
x

Detailed description:

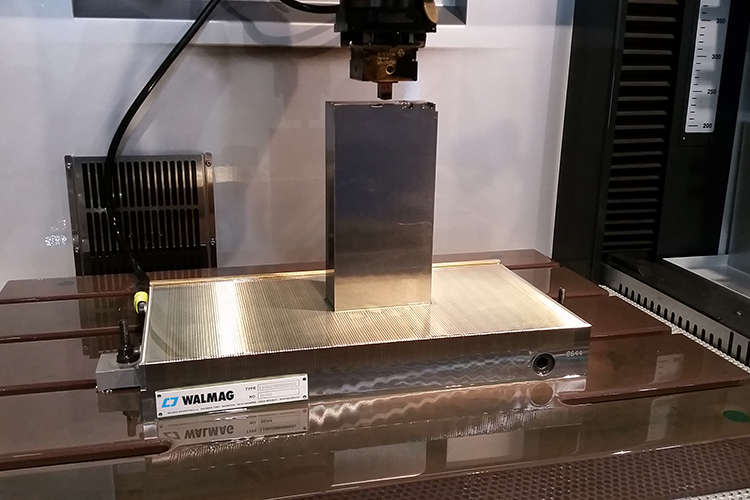

The Neomicro permanent magnetic chuck is ideal for precise grinding of small and thin as well as large pieces or for electrical discharge machining (EDM). Its structure is waterproof. It can be cooled with coolant and immersed in dielectric liquid. The upper top plate composed of brass and steel lamellae ensures high stability, accuracy, and efficiency of clamping using the maximum concentration of magnetic force into the workpiece. A long life span is ensured by the top plate with a regrinding limit up to 7 mm.

Important parameters:

  • Application: Grinding, EDM
  • Technology: Permanent
  • Holding force: 100 N/cm2
  • Min. workpiece size: 4 x 4 x 1 mm
  • Poles: Transverse
  • Regrinding limit: 7 mm
  • Pole pitch: T1.9 1.4+0.5 mm - steel/brass

Use:

  • Precise surface grinding of small and thin, as well as large parts
  • Also suitable for electrical discharge machining (EDM)

Scope of supply:

  • Magnetic chuck
  • Set of clamps
  • Allen key
  • Rear and side stop blocks
  • Instructions for use

Parameters

Model W (mm) L (mm) H (mm) Weight (kg)
NEOC100175 100 175 49 7
NEOC100250 100 250 49 10
NEOC130255 130 255 49 13
NEOC150250 150 250 51 15
NEOC150300 150 300 51 18
NEOC150350 150 350 51 22
NEOC150400 150 400 51 25
NEOC150450 150 450 51 28
NEOC200400 200 400 51 34
NEOC200450 200 450 51 37
NEOC200500 200 500 51 41
NEOC200600 200 600 51 49
NEOC250500 250 500 56 56
NEOC300600 300 600 56 81
