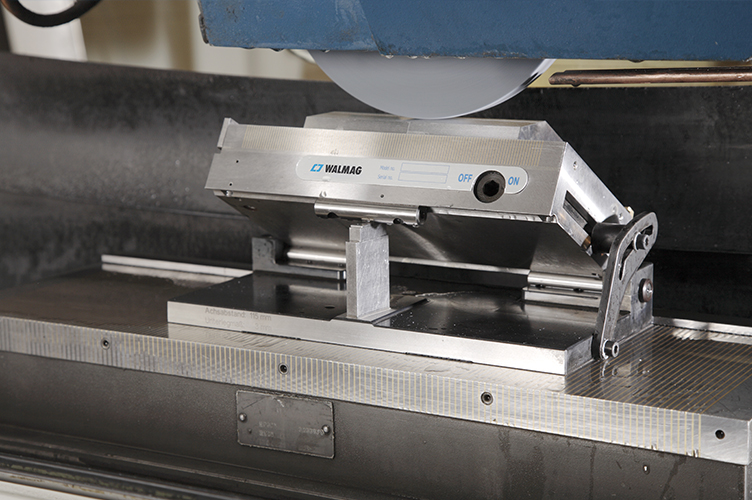

Simple Fixar sine table for accurate angular grinding and EDM


When to choose a Fixar simple sine table:

Fixar - a simple sine table with a Neomicro permanent chuck suitable for precise angle grinding, electrical discharge machining, and measuring. You can choose a model with an angle setting in the longitudinal or in the transverse axis.

Advantages:

  • Longitudinal angle setting in a range of 0 – 45° (or transverse 0 – 30°)
  • Hardened base plate for extraordinary stability
  • Extraordinary accuracy +/- 5 seconds of arc even after a longer period of use
  • Parallelism (paralleling): +/- 5 micrometres per 100 mm
  • Equipped with a high-quality Neomicro magnetic chuck with fine pole layout (optionally, the table can be equipped with a different chuck, e.g. Neomill or Electrofine)
Buy

Related products

Help

This product can be rented. Just create an inquiry and check the rent box.

Help

Are you not sure that this product is the right choice? Send us your inquiry and our representatives will be happy to advise you.

Catalog number Dimension Height [mm] Weight [kg] Availability (approximate) Price without VAT
SINES70140 70x140 mm 67,00 7,00 7 - 8 weeks
1,123 EUR
x
SINES130255 130x255 mm 76,00 7,00 7 - 8 weeks
1,431 EUR
x
SINES150250 150x250 mm 79,00 22,00 7 - 8 weeks
1,468 EUR
x
SINES150300 150x300 mm 79,00 36,00 7 - 8 weeks
1,634 EUR
x
SINES150350 150x350 mm 87,00 35,00 7 - 8 weeks
1,796 EUR
x
SINES150450 150x450 mm 87,00 44,00 7 - 8 weeks
2,259 EUR
x
SINES200400 200x400 mm 88,00 52,00 7 - 8 weeks
2,638 EUR
x
SINES300600 300x600 mm 95,00 121,00 7 - 8 weeks
5,496 EUR
x

Detailed description:

The Fixar simple sine table is a highly precise tool, which is intended for reliable workpiece clamping during precise angle grinding, electrical discharge machining and for measuring purposes. It allows the setting of angles using a gauge in the range of 0 – 45° with high accuracy. You set angles using end gauges based on the sine principle. The unique design of the bearing along with the hardened base plate and side guidance provide extreme precision even after a long period of use. The sine table is equipped with a Neomicro permanent magnetic chuck, which is simple and low maintenance.

Important parameters:

  • Application: Grinding, measuring, EDM
  • Technology: Permanent
  • Holding force: 100 N/cm2
  • Min. workpiece size: 4 x 4 x 1 mm
  • Poles: Transverse
  • Regrinding limit: 7 mm
  • Pole pitch: T1.9 1.4+0.5 mm (steel/brass)

Additional information:

The Fixar simple sine table allows tilting either on the longitudinal or the transverse axis – depending on the model you choose. If you require tilting on both axes at the same time, have a look at the Fixar compound sine table.

Scope of supply:

  • Sine table
  • Allen keys
  • Table for quick angle setting
  • Instructions for use

Use:

  • Accurate angle surface grinding
  • Electrical discharge machining -EDM
  • Measuring

Parameters

Model W (mm) L (mm) H (mm) C x D (mm) S (mm) Weight (kg)
SINES70140 70 140 67 130 x 140 55 7
SINES130255 130 255 76 295 x 145 115 20
SINES150250 150 250 79 290 x 165 135 20
SINES150300 150 300 79 340 x 165 135 27
SINES150350 150 350 87 390 x 165 135 34,5
SINES150450 150 450 87 490 x 165 135 44
SINES200400 200 400 88 440 x 215 185 52
SINES300600 300 600 95 660 x 320 285 121
