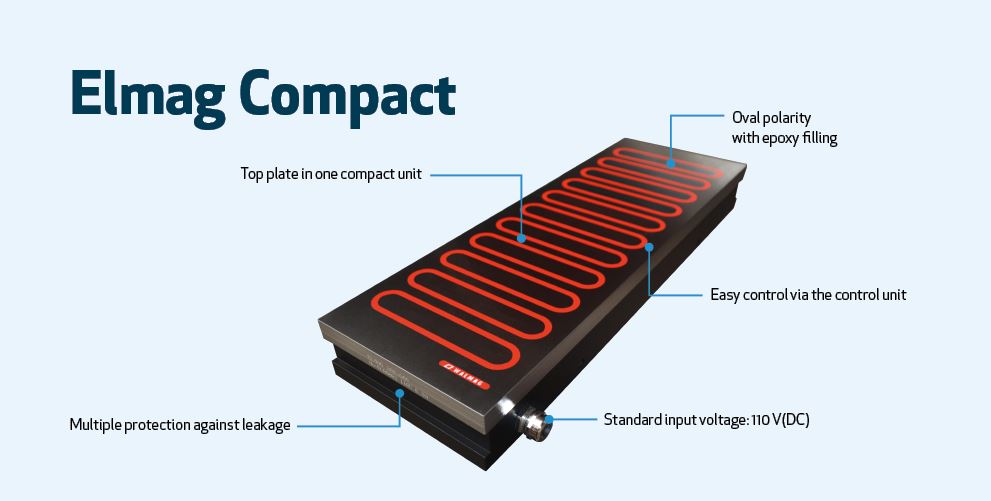

The Elmag Compact electromagnetic plate chuck is for surface grinding


When to choose an Elmag Compact magnetic chuck:

The Elmag Compact electromagnetic chuck is suitable for heavy and final surface grinding of medium to large size workpieces.

Advantages:

  • Easy operation using the control unit
  • Pole plate is one compact unit
  • Long life span thanks to the high regrinding limit of the top plate
  • Multiple protection against leakage – the body from one piece of steel, coils fully moulded in epoxy resin, high-quality galvanized foil between the body and the top plate of the magnet
  • Standard length of the power supply cable is 6 m
  • Standard input voltage: 110 V(DC)
Buy

Related products

Help

This product can be rented. Just create an inquiry and check the rent box.

Help

Are you not sure that this product is the right choice? Send us your inquiry and our representatives will be happy to advise you.

Catalog number Chuck dimension Height [mm] Weight [kg] Availability (approximate) Price without VAT
ELMG200600 200x600 mm 70,00 60,00 4 - 5 weeks
1,401 EUR
x
ELMG2001000 200x1000 mm 80,00 116,00 5 - 6 weeks
2,008 EUR
x
ELMG2501000 250x1000 mm 79,00 137,00 5 - 6 weeks
2,353 EUR
x
ELMG300500 300x500 mm 70,00 76,00 4 - 5 weeks
1,573 EUR
x
ELMG300600 300x600 mm 70,00 91,00 4 - 5 weeks
1,869 EUR
x
ELMG300800 300x800 mm 70,00 122,00 5 - 6 weeks
2,259 EUR
x
ELMG3001000 300x1000 mm 80,00 174,00 4 - 5 weeks
2,678 EUR
x
ELMG3001500 300x1500 mm 80,00 260,00 5 - 6 weeks
3,517 EUR
x
ELMG400600 400x600 mm 70,00 122,00 5 - 6 weeks
2,259 EUR
x
ELMG400700 400x700 mm 70,00 141,00 5 - 6 weeks
2,509 EUR
x
ELMG400800 400x800 mm 70,00 162,00 5 - 6 weeks
2,757 EUR
x
ELMG4001000 400x1000 mm 80,00 232,00 5 - 6 weeks
3,272 EUR
x
ELMG4001500 400x1500 mm 80,00 347,00 5 - 6 weeks
4,147 EUR
x
ELMG4002000 400x2000 mm 80,00 463,00 5 - 6 weeks
5,530 EUR
x
ELMG500600 500x600 mm 70,00 152,00 5 - 6 weeks
2,678 EUR
x
ELMG500800 500x800 mm 70,00 203,00 5 - 6 weeks
3,272 EUR
x
ELMG5001000 500x1000 mm 80,00 290,00 5 - 6 weeks
3,456 EUR
x
ELMG5001500 500x1500 mm 80,00 435,00 5 - 6 weeks
5,184 EUR
x
ELMG5002000 500x2000 mm 80,00 579,00 5 - 6 weeks
7,791 EUR
x
ELMG6001000 600x1000 mm 80,00 347,00 5 - 6 weeks
4,147 EUR
x
ELMG6001500 600x1500 mm 80,00 533,00 5 - 6 weeks
6,221 EUR
x
ELMG6002000 600x2000 mm 80,00 689,00 5 - 6 weeks
9,349 EUR
x

Detailed description:

The Elmag Compact is a powerful electromagnetic chuck suitable for flat grinding. The top plate is made of a single compact unit. The insulation between the poles is made of hard epoxy resin filler. The Elmag Compact chuck is delivered with stop bars and a power supply cable as standard.

Important parameters:

  • Application: Grinding
  • Technology: Electromagnet
  • Holding force: 130 N/cm2
  • Min. workpiece size: 22 x 144 x 48 mm
  • Poles: Oval
  • Pole pitch: T48 mm
  • Regrinding limit: 8 mm
  • Power supply cable length: 6 m

Use:

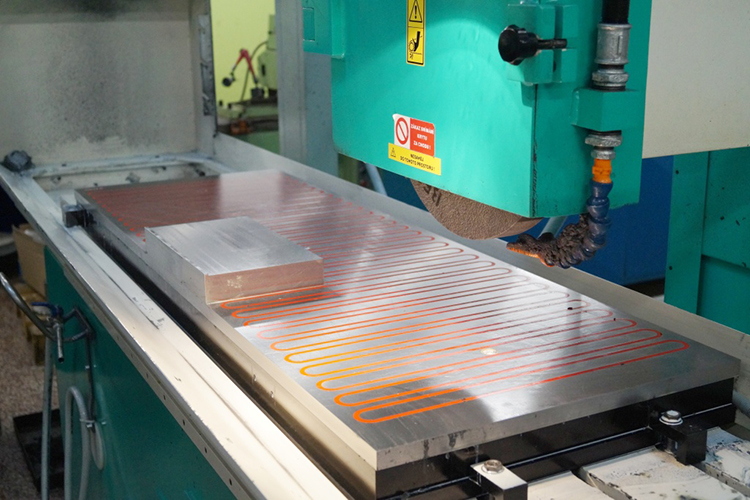

  • Clamping of medium to large size parts on grinders Heavy and final surface grinding

Scope of supply:

  • Magnetic chuck
  • Set of clamps
  • Can Power supply cable
  • Instructions for use

Parameters

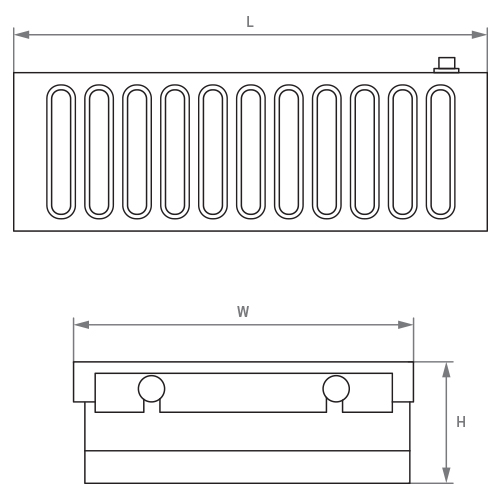

Model W (mm) L (mm) H (mm) Weight (kg)
ELMG200600 200 600 70 60
ELMG2001000 200 1000 80 116
ELMG2501000 250 1000 79 137
ELMG300500 300 500 70 76
ELMG300600 300 600 70 91
ELMG300800 300 800 70 122
ELMG3001000 300 1000 80 174
ELMG3001500 300 1500 80 260
ELMG400600 400 600 70 122
ELMG400700 400 700 70 141
ELMG400800 400 900 70 162
ELMG6001000 600 1000 80 347
ELMG6001500 600 1500 80 533
ELMG6001500 600 1500 80 689
