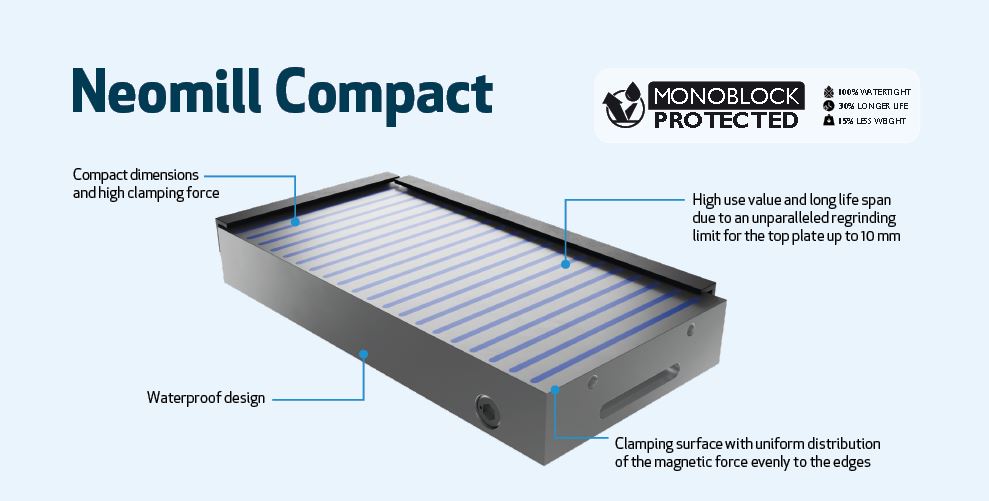

Neomill compact permanent magnetic chuck for milling


When to choose a Neomill Compact magnetic chuck:

Milling, drilling, planing or heavy grinding. The Neomill magnetic chuck can be of use anywhere where really a high holding force and stability for clamping of relatively small workpieces are needed. This product is suitable for metal cutting operations with coolant. For dry machining, Neomill (STD) is the first choice.

Advantages:

  • Compact dimensions and a high holding force - 160 N/cm2
  • Long life span thanks to an unparalleled regrinding limit for the top plate up to 10 mm
  • Holding surface with uniform distribution of the magnetic force right up to the edges
  • Waterproof design

Related products

Help

This product can be rented. Just create an inquiry and check the rent box.

Help

Are you not sure that this product is the right choice? Send us your inquiry and our representatives will be happy to advise you.

Catalog number Chuck dimension Height [mm] Availability (approximate) Price without VAT
(valid for EU flag EU only)
NEOMC150250
150x250 mm 50.00 usually in stock
On request
NEOMC150450
150x450 mm 50.00 4 - 5 weeks
On request
NEOMC200400
200x400 mm 55.00 usually in stock
On request
NEOMC200500
200x500 mm 55.00 4 - 5 weeks
On request
NEOMC200600
200x600 mm 55.00 4 - 5 weeks
On request
NEOMC250400
250x400 mm 60.00 4 - 5 weeks
On request
NEOMC300500
300x500 mm 60.00 4 - 5 weeks
On request
NEOMC300600
300x600 mm 60.00 usually in stock
On request

Detailed description:

Neomill Compact is a permanent magnetic chuck with a unique waterproof design.The body (base) is made of durable and rigid material. The top plate is made of one piece of steel. The customer can prepare e.g. pockets and other auxiliary provisions for mass production anywhere on the top plate without slackening or disintegration of the top plate.

Important parameters:

  • Application: Milling
  • Technology: Permanent
  • Holding force: 160 N/cm2
  • Min. workpiece size: 25 x 25 x 6 mm
  • Poles: Transverse
  • Regrinding limit: 10 mm
  • Pole pitch: T15 11+4 mm - steel/epoxy resin
  • Guarantee: 2 years

Use:

  • Milling
  • Drilling
  • Planing
  • Heavy grinding

Scope of supply:

  • Magnetic chuck
  • Stop bars
  • Allen key
  • Certificate
  • Set of clamps
  • Operating and maintenance instructions
Výkres Neomill Compact

Parameters

Model W (mm) L (mm) H (mm) Weight (kg)
NEOMC150250 150 250 50 14
NEOMC150450 150 450 50 25
NEOMC200400 200 400 55 33
NEOMC200500 200 500 55 41
NEOMC200600 200 600 55 49
NEOMC250400 250 400 60 45
NEOMC300500 300 500 60 67
NEOMC300600 300 600 60 81
