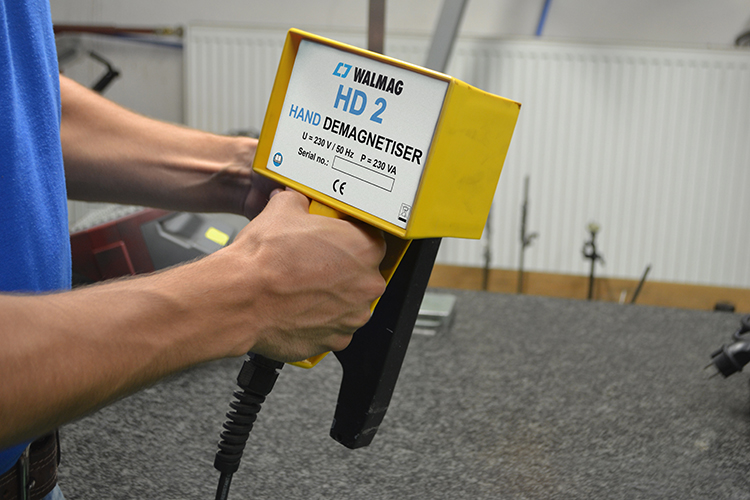

HD hand-held demagnetizer for demagnetizing large and complex components


When to choose a HD handheld demagnetizer:

You can use the HD handheld demagnetizer during mobile demagnetization of large or complex components where you cannot use table or tunnel demagnetizers, such as moulds, bearings, and various machine and mechanical parts, etc. It is an efficient tool where quick and mobile demagnetization is needed.

Advantages:

  • Compact dimensions and mobility
  • High demagnetization power
  • Lightweight plastic structure with a large handle
  • Push button for simple operation Overheating protection
  • Recommended duty cycle 20 % (max. 10 min.)
  • 3m power supply cable with plug
Buy

Related products

Help

This product can be rented. Just create an inquiry and check the rent box.

Help

Are you not sure that this product is the right choice? Send us your inquiry and our representatives will be happy to advise you.

Catalog number Parameters Height [mm] Weight [kg] Availability (approximate) Price without VAT
HD1 300 VA 200,00 2,00 1 - 4 days
482 EUR
x
HD2 350 VA 215,00 3,00 1 - 4 days
592 EUR
x

Detailed description:

Some materials retain residual magnetism if exposed to magnetic fields – the amount depends on the workpiece size and the type of material. To remove this undesirable residual magnetism, the object must be exposed to an alternating magnetic field, which eliminates the magnetism to the lowest possible value. If there are large components or workpieces, it is possible to use the lightweight HD handheld demagnetizer, which is operated easily and is portable. We offer two models of the handheld demagnetizer depending on the thickness and dimensions of the workpiece to be demagnetized. HD1 is intended for smaller and thinner components, and HD2 is for larger and thicker workpieces or tools.

Important parameters:

  • Application: Demagnetization
  • Technology: Electro
  • Duty cycle: 20 %
  • Operating time: 10 min.
  • Height of demagnetization field: Up to 30 mm
  • Power: 230 VAC / 50-60 Hz, by request also 110 VAC

Use:

  • Quick mobile demagnetization of small and large or complex components

Parameters

Model Active area (mm) Voltage (VA) Depth of the magnetic field (mm) Weight (kg)
HD1 105 x 75 300 max. 20 1,9
HD2 105 x 95 350 max. 40 2,2
