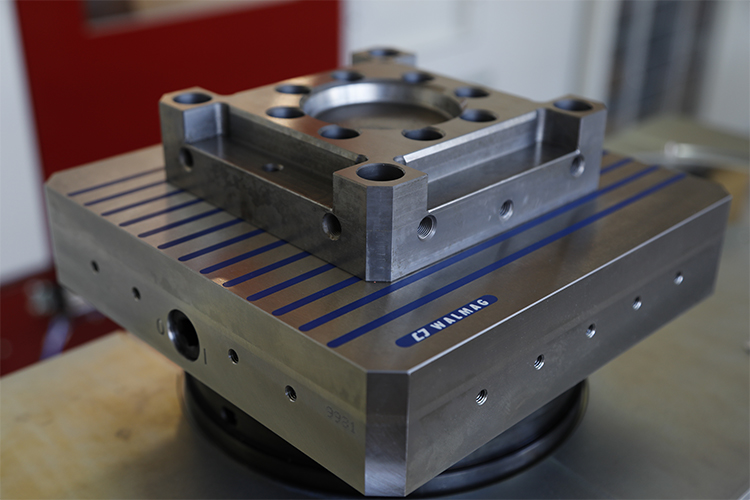

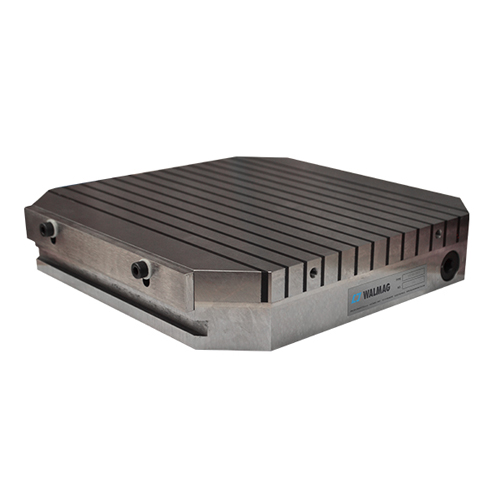

Neomill Compact pallet chuck for milling


When to choose a Neomill Compact permanent magnetic pallet chuck:

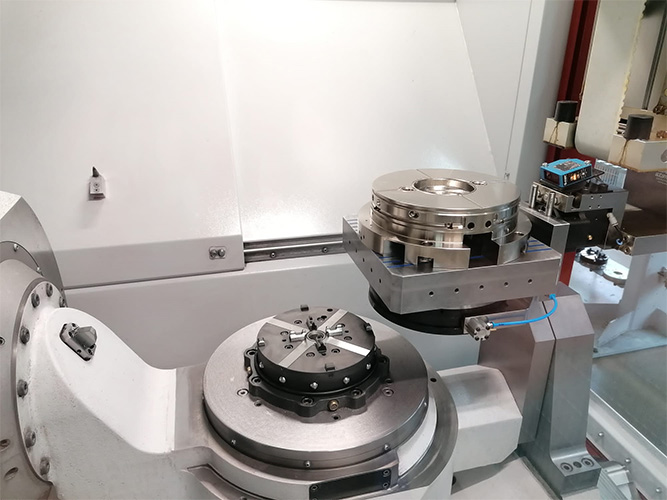

The Neomill Compact pallet magnetic chuck is designed for workpiece clamping and for precise workpiece clamping in automated production plants. It is suitable for machining, grinding, milling, electrical discharge machining and measuring operations from smaller up to medium and larger components. You will use it everywhere a high holding force and stability is required.

Advantages:

  • Double magnetic system with neodymium magnets
  • Long life span of the top plate
  • Clamping surface with a constant magnetic force up to the edges
  • Possibility of adaptation to various clamping systems with a repeatable clamping accuracy to zero reference points (EROWA, 3R, etc.)
  • Waterproof design
  • The pallet can be provided with optional handles for easy handling of the chuck

Related products

Help

This product can be rented. Just create an inquiry and check the rent box.

Help

Are you not sure that this product is the right choice? Send us your inquiry and our representatives will be happy to advise you.

Catalog number Chuck dimension Height [mm] Availability (approximate) Price without VAT
(valid for EU flag EU only)
NEOM240240
240x240 mm 50.00 5 - 6 weeks
On request
NEOM280280
280x280 mm 50.00 5 - 6 weeks
On request
NEOMC320320
320x320 mm 48.00 4 - 5 weeks
On request
NEOM320320
320x320 mm 59.00 5 - 6 weeks
On request

Detailed description:

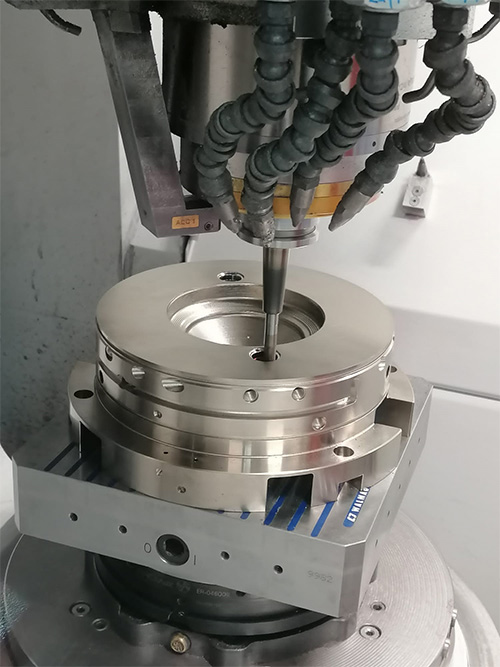

The Neomill Compact pallet is a magnetic chuck equipped with a robust and waterproof structure. Durability and strong neodymium magnets make it suitable for workpiece clamping in the most demanding machining applications such as hard and high speed milling. The versatility of the chuck is provided by the top plate with transverse pole division, which clamps both small and sizeable components perfectly with its holding force.

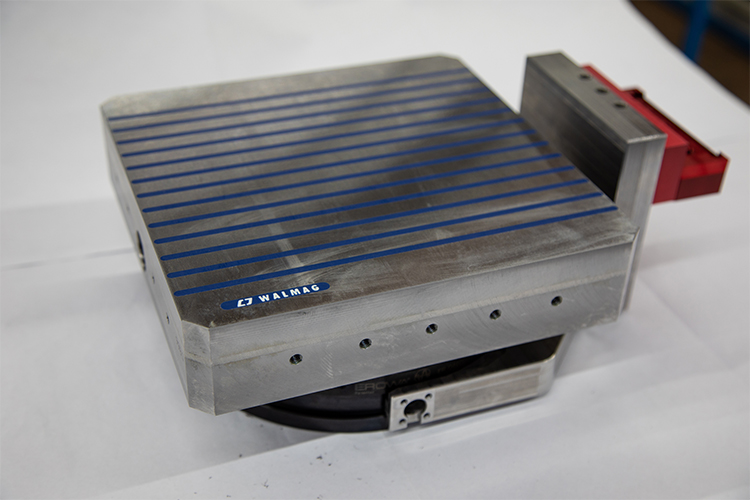

Optionally, the chuck can be equipped with practical handles with which the chuck can be moved easily to another machine or to a table for picking operations outside the machine.

Important parameters:

  • Application: Milling, surface grinding
  • Technology: Permanent
  • Holding force: 160 N/cm2
  • Min. workpiece size: 25 x 25 x 6 mm
  • Poles: Transverse
  • Regrinding limit: 10 mm
  • Pole pitch: T15 11+4 mm (steel/epoxy resin)
  • Guarantee: 2 years

Scope of supply:

  • Magnetic chuck
  • Allen key
  • Instructions for use

Use:

  • Clamping of small up to large workpieces
Výkres Neomill Compact paletat

Parameters

Model W (mm) L (mm) H (mm) Weight (kg)
NEOMC240240 240 240 50 21
NEOMC280280 280 280 50 28
NEOMC320320 320 320 50 37
