DM table demagnetizer for manual and belt demagnetization

When to choose a DM table demagnetizer:

We recommend using the DM table demagnetizer where quick and simple demagnetization of tools and both flat and small cylindrical components is needed. The device is suitable not only for manual demagnetization, but it can be integrated into a production line very easily, for example, under a conveyor belt.

Advantages:

Different sizes of demagnetizer working area according to your needs
You can enlarge the work area by using more demagnetizers side by side Also suitable as part of a production line, for example, under a conveyor belt

Related products

TDM demagnetizer for demagnetizing large and complex components
Demagnetizer with a 100% duty cycle suitable for use under belt conveyors.

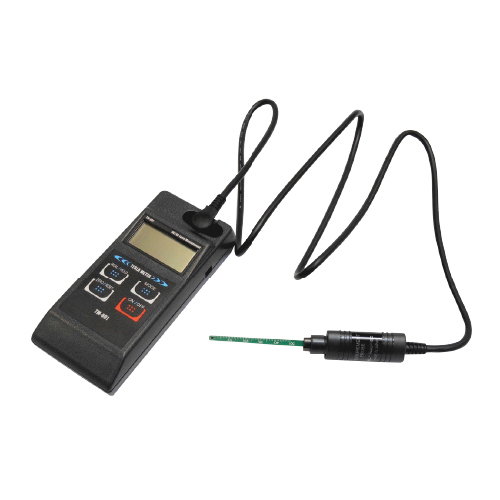

TM-801 digital meter for measuring residual magnetism
Magnetism measuring meter with probe for better accessibility during measurements.

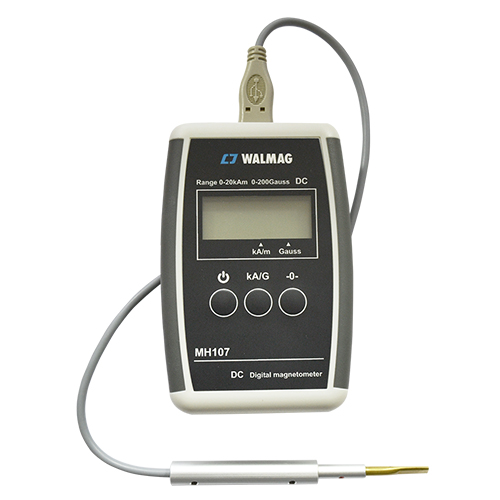

Digital meter for measuring residual magnetism MH-107
Digital device for accurate measurement of residual magnetism.

This product can be rented. Just create an inquiry and check the rent box.

Are you not sure that this product is the right choice? Send us your inquiry and our representatives will be happy to advise you.

Display as table

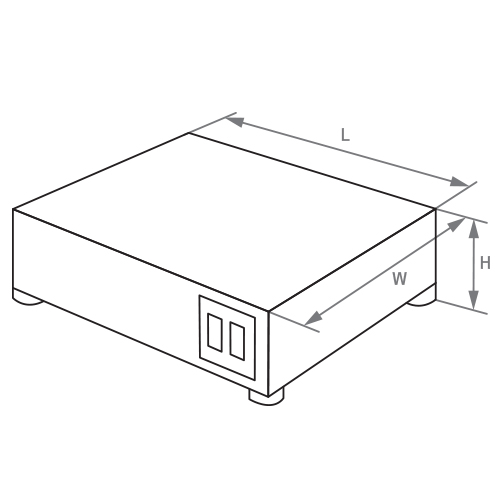

Catalog number	Voltage	Height [mm]	Availability (approximate)	Price without VAT (valid for EU only)
DM3	230 V	87.00	1 - 4 days	On request
DM4	230 V	87.00	1 - 4 days	On request
DM5	230 V	87.00	1 - 4 days	On request

Detailed description:

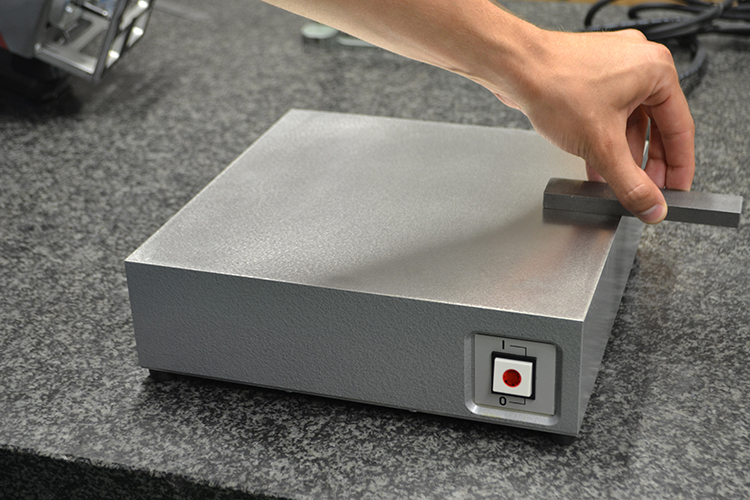

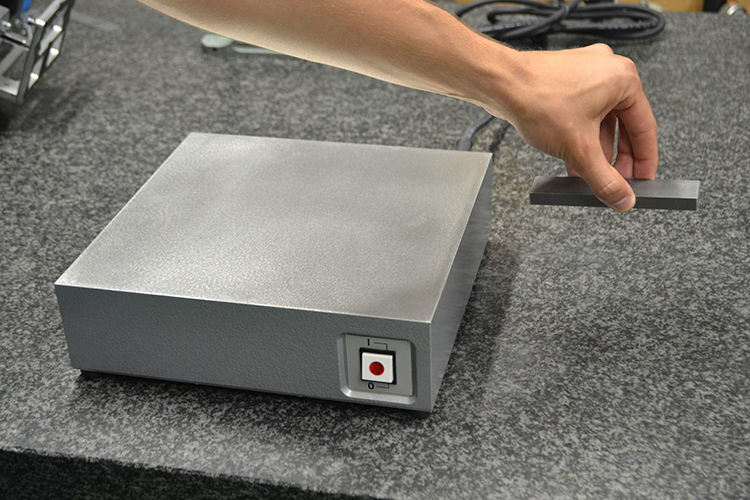

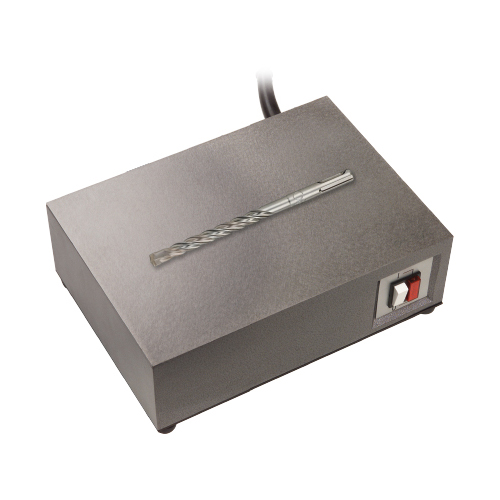

The DM demagnetizer is a light table model for quick manual and automated demagnetization. This is necessary before subsequent processing (by lacquering, painting) of components which have already been in contact with industrial magnets. The demagnetizers can even be used for components that must be demagnetized in order to meet final standards. The depth of the demagnetization field is up to 40 mm. As standard, we deliver the DM demagnetizer with a 3m power supply cable. If you are not sure about selection, contact us.

Important parameters:

Application: Demagnetization
Technology: Electro
Max. workpiece size: 400 x 280 mm
Duty cycle: 20 %
Height of demagnetization field: Up to 40 mm
Power: 230 VAC / 50 Hz other options also available (110 VAC/ 50-60Hz)
Guarantee: 2 years

Use:

Manual demagnetization of tools, dies, bearings, and other cylindrical and flat components Demagnetization under a conveyor belt on a production line
Possibility of putting several demagnetizers side by side to create a larger working area
