Magnetic base for measuring equipment Magbase 3D


When to select a magnetic base for measuring equipment:

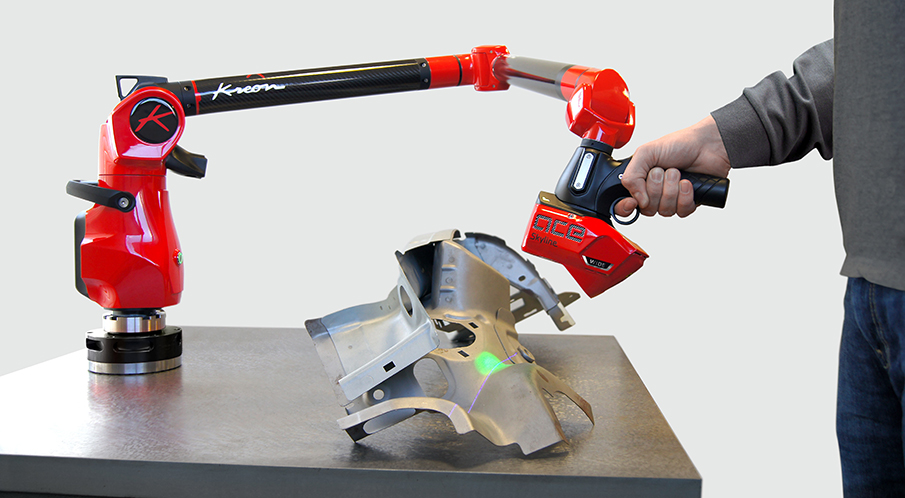

A magnetic base is an excellent method of mounting the measuring arm onto the steel surface of the work table or directly onto the machine bed. Due to its low weight and easy switching, it is a really mobile tool for quick repositioning in case of measuring on different parts of the table. The measuring instrument with this base can be placed directly on the measured part.

Advantages:

  • Very easy activation
  • High holding force of 140 N/cm2
  • Compact design and low dead weight
  • Compatible with the Brunson connecting adapter
  • Easy activation using the switching key
Buy

Related products

Help

This product can be rented. Just create an inquiry and check the rent box.

Help

Are you not sure that this product is the right choice? Send us your inquiry and our representatives will be happy to advise you.

Catalog number Magnetic base diameter Height [mm] Availability (approximate) Price without VAT
(valid for EU flag EU only)
MAGB150
D150 73.00 6 - 8 weeks
1,466 EUR
x

Detailed description:

Permanent magnetic base adapted for attaching 3D measuring devices (measuring arms, etc.). It is compatible with measuring devices from renowned manufacturers (FARO, Hexagon, etc.).

Important parameters:

  • Technology: Accessories
  • Application: Permanent
  • Chuck diameter: 150 mm
  • Holding force: up to 140 N/cm2
  • Poles: Radial
  • Guarantee: 2 years

Use:

  • Accessories for portable measuring arms designed for highly precise measurement using touch probes
  • Magnetic holder for laser scanner

Package content:

  • Magnetic chuck
  • Switching key
  • Certificate
  • Instructions for use
Výkres Magbase 3D

Parameters:

Model D (mm) H (mm) Weight (kg) Mouting ring
MZPM150 150 73 4,95 89 mm x 8 UNC - 2A
