PRODUCT PARAMETERS


Load weight
kg
Load width
mm
Load length
mm
Load height
mm
Round bar - weight
kg
Round bar diameter
mm
Round bar length
mm
Max. material temperature

Magnet technology

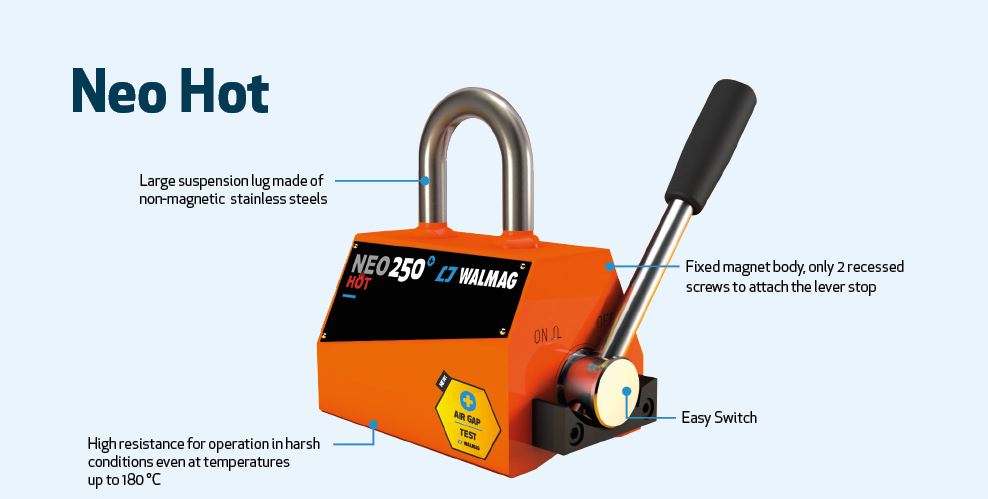

Neo Hot industrial permanent magnet


When to choose a Neo Hot permanent magnet:

The HOT series is a special design of permanent Neo lifting magnet intended for handling hot materials – burn parts, forgings, tools, workpieces, sheets, profiled sections, tubes, etc. It is noted for its high resistance when operated in difficult conditions and it makes it possible to handle loads at a temperature of up to 180 °C.

Advantages:

  • Easy Switch control – the lifting magnet can be switched on and off easily, quickly, and safely.
  • High resistance allows to operate the magnet in difficult conditions at temperatures up to 180 °C
  • The double magnetic circuit with strong BUX design neodymium magnets
  • Compact body with only two recessed screws
  • It has a low weight while retaining a high lifting capacity
  • 5-year warranty for the magnetic system

Related products

Help

This product can be rented. Just create an inquiry and check the rent box.

Help

Are you not sure that this product is the right choice? Send us your inquiry and our representatives will be happy to advise you.

Catalog number Lifting capacity Height [mm] Availability (approximate) Price without VAT
(valid for EU flag EU only)
NEOL125H
125 kg 120.00 usually in stock
On request
NEOL250H
250 kg 180.00 usually in stock
On request
NEOL500H
500 kg 180.00 usually in stock
On request
NEOL1000H
1000 kg 236.00 usually in stock
On request
NEOL1500H
1500 kg 273.00 usually in stock
On request
NEOL2000H
2000 kg 273.00 usually in stock
On request

Detailed description:

The Neo HOT permanent lifting magnet is designed for a long life span even in the most demanding operations at working temperatures up to 180 °C. Its design makes it possible to handle flat and round load profiles. The high lifting capacity is achieved by using a double magnetic circuit of strong neodymium magnets.

The EASY SWITCH design provides safe magnet switching. Operation of the magnet is very easy and can be done with just one hand. Emphasis is also placed on safety for the Neo Hot permanent lifting magnet: Testing is carried out by simulation of conditions in real operation, including the Air Gap Test. Even through the air gap, the achieved safety factor of this magnet (based on break-away test) is 3+. In other words, the maximum theoretical lifting capacity is equal to more the three times the nominal capacity.

Important parameters:

  • Application: Lifting
  • Technology: Permanent
  • Nominal lifting capacity for flat material: up to 2000 kg
  • Nominal lifting capacity for round material: up to 1000 kg
  • Temperature: max. 180 °C
  • Safety factor: 3+ (tested according to EN 13155)

Use:

  • Handling and lifting of not only hot loads Handling flat and round workpieces
  • Handling sheets and profiled sections

Scope of supply:

  • Magnet with label
  • nstructions for use
  • Certificate
Neo Hot drawing

Parameters

Model W (mm) L (mm) H (mm) Eye diameter (mm) Weight (mm) Max. tested capacity (kg) Workload limit flat materials (kg) Workload limit round materials (kg) Min/max diameter (mm)
NEOL125H 60 93 120 10 3 450 125 40 50/100
NEOL250H 100 152 180 16 10 800 250 125 60/200
NEOL500H 120 246 180 20 21 1600 500 250 65/270
NEOL1000H 146 306 236 20 40 3200 1000 500 100/300
NEOL1500H 165 374 273 20 69 4700 1500 750 150/350
NEOL2000H 165 478 273 20 90 6200 2000 1000 150/350
