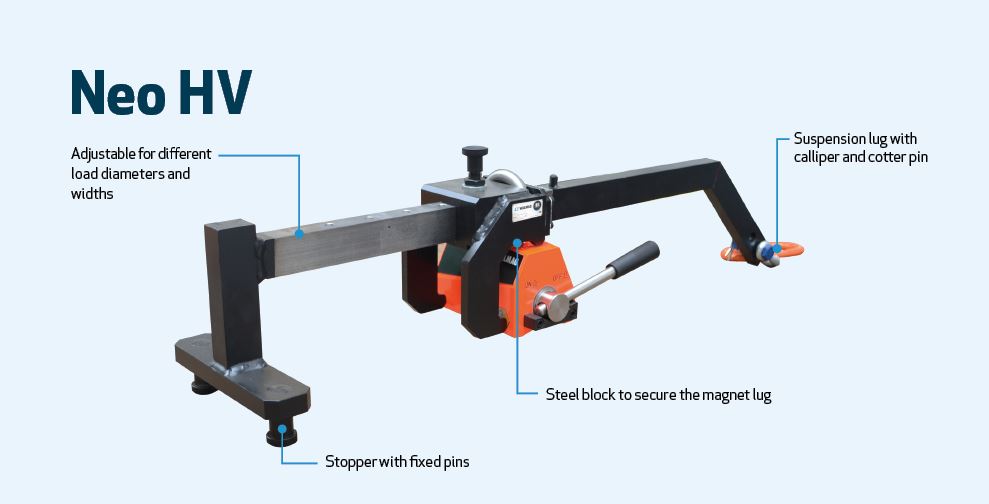

Neo HV lifting arm


When to choose a Neo HV lifting arm:

The Neo HV is a lifting arm, thanks to which, in combination with a lifting magnet, you can easily turn a workpiece from the horizontal to the vertical position. You will appreciate this when handling sheets, metal plates and round materials for lathes and horizontal machining centres.

Advantages:

  • Possibility to adjust the arm to a wide range of diameters and widths
  • Removable lifting arm for magnet replacement
  • Robust lifting eye

Additional information:

  • The lifting magnet is not included.
  • The individual models of HV liftarm are compatible with NEO 250, 500 and 1000 capacities
Buy

Related products

Help

This product can be rented. Just create an inquiry and check the rent box.

Help

Are you not sure that this product is the right choice? Send us your inquiry and our representatives will be happy to advise you.

Catalog number Model Height [mm] Weight [kg] Availability (approximate) Price without VAT
LARM1000 HV 1000 297,00 33,00 1 - 4 days
754 EUR
x
LARM250 HV 250 244,00 16,00 1 - 4 days
524 EUR
x
LARM500 HV 500 244,00 20,00 1 - 4 days
565 EUR
x

Detailed description:

The Neo HV lifting arm, in connection with a Neo lifting magnet, is a versatile aid for handling loads from the horizontal to the vertical position and vice versa. For example, if a plate is on a pallet and you need to move it to a lathe, you must usually make use chains, clamps, and at least two workers. With a lifting arm equipped with a Neo permanent lifting magnet, you will save manpower and make the operation more efficient.

Important parameters:

  • Application: Lifting
  • Technology: Permanent
  • Nominal lifting capacity for flat material: up to 1000 kg
  • Safety factor: 3:1

Additional information:

  • The lifting magnet is not included.

Use:

  • For manoeuvring workpieces to horizontal machining centres and lathes

Scope of supply:

  • Lifting arm
  • Certificate
  • Instructions for use

Parameters

Model W (mm) L (mm) H (mm) Lifting capacity (kg) Workpiece width (mm) Weight without magnet (kg)
LARM250 210 958 244 250 300-800 16
LARM500 210 1158 244 500 300-1000 20
LARM1000 210 1211 297 1000 300-1000 33
