Elmag Wave electromagnetic chuck for surface grinding


When to choose an Elmag Wave magnetic chuck:

Elmag Wave is an electromagnetic chuck suitable for heavy and high-performance surface grinding. The chucks are particularly efficient for roughing operations primarily on vertical grinders with grinding segments.

Advantages:

  • High-performance clamping electromagnet
  • Multiple protection against leakage – the body is made of one piece of steel, the coils are fully moulded in epoxy resin, and high-quality galvanized foils are used between the body and the top plate of the magnet
  • The shape of the poles allows uniform distribution of the holding force over the entire active surface of the chuck
  • Standard length of the power supply cable is 3 m
  • Standard input voltage: 110 V(DC)
Buy

Related products

Help

This product can be rented. Just create an inquiry and check the rent box.

Help

Are you not sure that this product is the right choice? Send us your inquiry and our representatives will be happy to advise you.

Catalog number Chuck dimension Height [mm] Weight [kg] Availability (approximate) Price without VAT
ELMGW200600 200x600 mm 70,00 59,00 4 - 5 weeks
1,892 EUR
x
ELMGW2001000 200x1000 mm 80,00 113,00 5 - 6 weeks
2,537 EUR
x
ELMGW2501000 250x1000 mm 79,00 135,00 5 - 6 weeks
2,999 EUR
x
ELMGW300500 300x500 mm 70,00 74,00 4 - 5 weeks
2,211 EUR
x
ELMGW300600 300x600 mm 70,00 89,00 4 - 5 weeks
2,375 EUR
x
ELMGW300800 300x800 mm 70,00 119,00 5 - 6 weeks
2,879 EUR
x
ELMGW3001000 300x1000 mm 80,00 170,00 4 - 5 weeks
3,394 EUR
x
ELMGW3001500 300x1500 mm 80,00 254,00 5 - 6 weeks
4,566 EUR
x
ELMGW400600 400x600 mm 70,00 119,00 5 - 6 weeks
2,879 EUR
x
ELMGW400700 400x700 mm 70,00 138,00 5 - 6 weeks
3,167 EUR
x
ELMGW400800 400x800 mm 70,00 158,00 5 - 6 weeks
3,400 EUR
x
ELMGW4001000 400x1000 mm 80,00 226,00 5 - 6 weeks
4,059 EUR
x
ELMGW4001500 400x1500 mm 80,00 339,00 5 - 6 weeks
5,944 EUR
x
ELMGW4002000 400x2000 mm 80,00 452,00 5 - 6 weeks
8,364 EUR
x
ELMGW500600 500x600 mm 70,00 148,00 5 - 6 weeks
4,283 EUR
x
ELMGW500800 500x800 mm 70,00 198,00 5 - 6 weeks
4,059 EUR
x
ELMGW5001000 500x1000 mm 80,00 248,00 5 - 6 weeks
4,953 EUR
x
ELMGW5001500 500x1500 mm 80,00 424,00 5 - 6 weeks
7,456 EUR
x
ELMGW5002000 500x2000 mm 80,00 565,00 5 - 6 weeks
10,472 EUR
x
ELMGW6001000 600x1000 mm 80,00 339,00 5 - 6 weeks
5,944 EUR
x
ELMGW6001500 600x1500 mm 80,00 509,00 5 - 6 weeks
9,255 EUR
x
ELMGW6002000 600x2000 mm 80,00 678,00 5 - 6 weeks
12,566 EUR
x

Detailed description:

The Elmag Wave electromagnetic chuck is designed for heavy duty on industrial premises.The shifted layout of the poles (WAVE form) creates uniform distribution of the holding force both in longitudinal and transverse directions, which helps reduce shear forces during active grinding. During use, this electromagnet chuck demonstrates high stability, variability, accuracy, and a long life span.

Important parameters:

  • Application: Grinding
  • Technology: Electromagnet
  • Holding force: 130 N/cm2
  • Min. workpiece size: 120 x 40 x 20 mm
  • Poles: Wave type
  • Pole pitch: T40
  • Regrinding limit: 8 mm

Additional information:

The Elmag Wave chuck is delivered with stop bars and the power supply cable as standard. We will be happy to help you select the control unit, just let us know. By request, it is possible to deliver another design of the electromagnetic chuck – dimensions, location of the outlet, power supply cable length, through-holes facilitating installation of the chuck on the machine table.

Use:

  • Heavy and high-performance surface grinding
  • Roughing primarily on vertical grinders with grinding segments

Scope of supply:

  • Magnetic chuck
  • Set of clamps
  • Power supply cable
  • Instructions for use

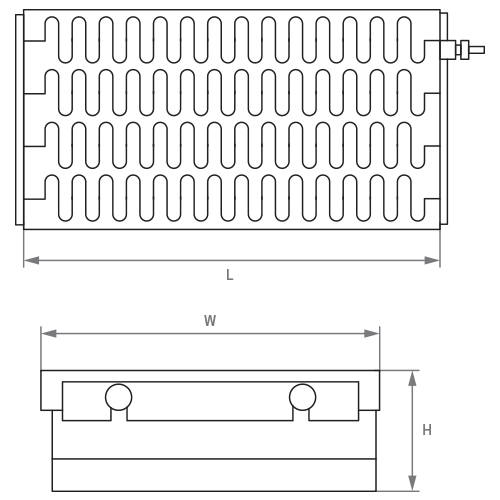

Parameters

Model W (mm) L (mm) H (mm) Weight (kg)
ELMGW200600 200 600 70 59
ELMGW2001000 200 1000 80 113
ELMGW2501000 250 1000 79 135
ELMGW300500 300 500 70 74
ELMGW300600 300 600 70 89
ELMGW300800 300 800 70 119
ELMGW3001000 300 1000 80 170
ELMGW3001500 300 1500 80 254
ELMGW400600 400 600 70 119
ELMGW400700 400 700 70 138
ELMGW400800 400 900 70 138
ELMGW6001000 600 1000 80 347
ELMGW6001500 600 1500 80 533
ELMGW6001500 600 1500 80 689
