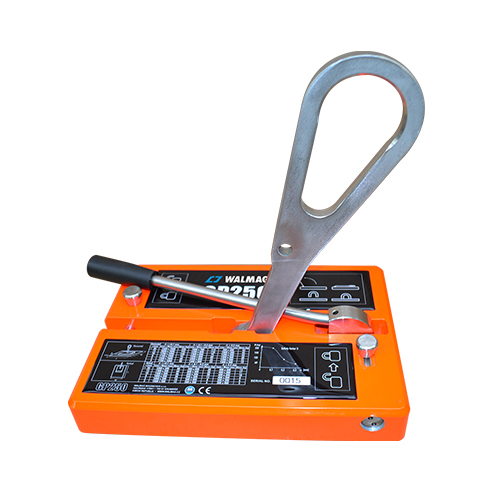

GP 250 industrial permanent magnet


When to choose a GP 250 permanent crane magnet:

The GP 250 is a permanent crane magnet for handling metal sheets and steel plates from 3 mm in thickness. Loads up to 250 kg can be handled horizontally, up to 80 kg vertically. Thanks to its unique configuration of poles, it is possible to use this magnet and take individual metal plates from a stack, starting with 4 mm in thickness. At the same time, this configuration reduces peel-off effect by thin metal sheets significantly. The magnet is in compliance with a lifting capacity factor of 4:1.

Advantages:

  • The first magnetic “claw” of its kind which is in compliance with UNI EN 13155 standard for handling with a crane
  • Easy handling and tilting of loads from horizontal to vertical positions and vice versa
  • Big lockable lifting eye prevents undesirable tilting from horizontal to vertical positions
  • Lockable release lever for comfortable and safe operation
  • The unique pole configuration reduces peel-off effect for thin sheets during handling
  • Thanks to its low magnetic field, it is possible to handle individual sheets from 3 mm in thickness
  • Light, compact design
Buy

Related products

Help

This product can be rented. Just create an inquiry and check the rent box.

Help

Are you not sure that this product is the right choice? Send us your inquiry and our representatives will be happy to advise you.

Catalog number Lifting capacity Height [mm] Weight [kg] Availability (approximate) Price without VAT
GP250 250 kg 40,00 9,80 1 - 4 days
588 EUR
x

Detailed description:

The permanent crane magnet allows easy lifting and handling of sheets and steel plates from horizontal to vertical positions and vice versa. A great advantage of this crane magnet is its large lifting eye, which is lockable in the vertical position. Due to this, the user has the possibility to handle flat loads safely in both positions, significantly facilitating work with loads.

Important parameters:

  • Application: Lifting
  • Technology: Permanent
  • Horizontal working limit: 250 kg
  • Vertical working limit: 80 kg
  • Size: 288 x 200 x 40 mm
  • Temperature: max. 80 °C
  • Safety factor: 4:1

Additional information:

GP 250 is a magnet suitable for handling flat loads with flat and clean surfaces. For uneven and contaminated surfaces, or round material such as bars, tubes, etc., we recommend a Neo series permanent lifting magnet

Use:

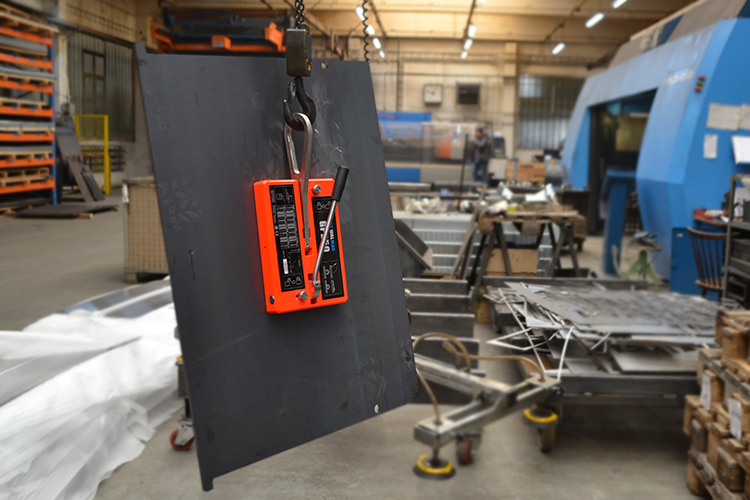

  • Strong magnet designed for suspension from a crane hook
  • Handling loads from horizontal to vertical positions and vice versa
  • Handling sheet metals from a stack, from 4 mm material thickness

Scope of supply:

  • Magnet
  • Instructions for use

Parameters:

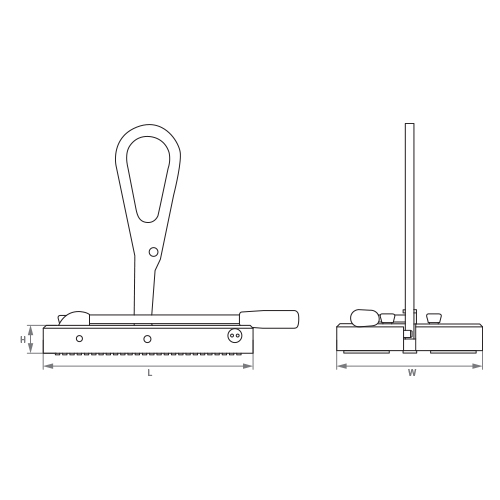

Model W (mm) L (mm) H (mm) Horizontal limit (kg) Vertical limit (kg) Weight (mm) Tested break away force (kg)
GP250 200 288 40 250 80 9,75 1100
