Permanent magnetic chuck Maxgrip


When to choose circular chuck Maxgrip:

Permanent circular magnetic chuck Maxgrip stands out for its high clamping force and versatility in use. The combination of solid top plate with relatively fine parallel pole arrangement and possibility to continuously control the clamping force means very easy centering of the workpieces during turning or grinding operations.

Advantages:

  • Solid steel body
  • Top plate with parallel pole configuration
  • Continuous adjustment of the holding force
  • Waterproof design
  • Double magnetic system
Buy

Related products

Help

This product can be rented. Just create an inquiry and check the rent box.

Help

Are you not sure that this product is the right choice? Send us your inquiry and our representatives will be happy to advise you.

Catalog number Chuck diameter Height [mm] Weight [kg] Availability (approximate) Price without VAT
MAXG200 D200 mm 57,00 15,00 6 - 8 weeks
981 EUR
x
MAXG250 D250 mm 57,00 22,00 in stock
1,201 EUR
x
MAXG300 D300 mm 57,00 32,00 6 - 8 weeks
1,510 EUR
x
MAXG350 D350 mm 57,00 43,00 6 - 8 weeks
2,127 EUR
x
MAXG400 D400 mm 57,00 56,00 6 - 8 weeks
2,744 EUR
x

Detail description:

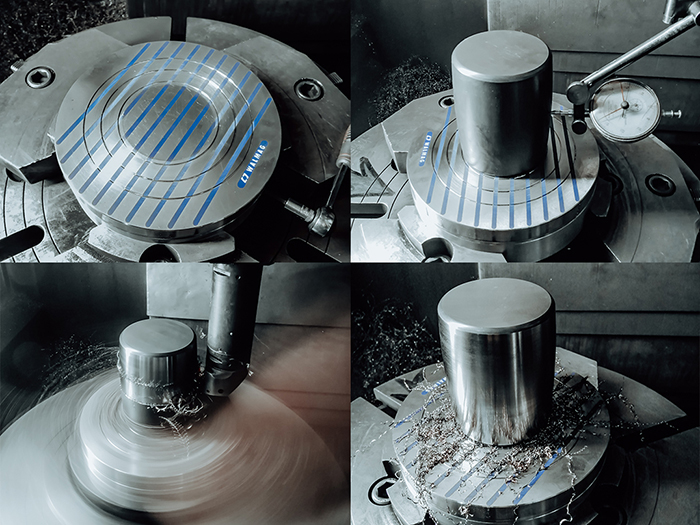

Maxgrip permanent magnetic chuck is a suitable tool for clamping of different workpiece shapes during grinding, as well as turning operations. The possibility to adjust the holding force greatly facilitates centering of workpieces. Thanks to the low and very stable magnetic field can be clamped even relatively small and thin workpieces. The top plate is made of one solid unit, so there is absolutely no risk of coolant leakage into the chuck´s body. The top plate has also high regrinding limit, which ensures a very long service life.

Important parameters:

  • Application: Turning, circular grinding
  • Technology: Permanent
  • Available dimensions: From 200 mm
  • Holding force: Up to 160 N /cm2
  • Poles: Parallel (transverse)
  • Min. workpiece diameter: 40 x 8 mm
  • Regrinding limit: 10 mm
  • Pole pitch: T15 11 + 4 mm (steel/epoxy)

Use:

  • Clamping of workpieces during turning and circular grinding

Scope of supply:

  • Magnetick chuck
  • Wrench key
  • Operating instructions

Parameters

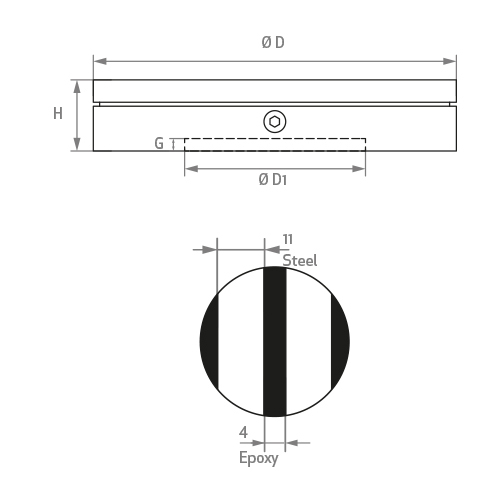

Model D (mm) H (mm) G (mm) D1 (mm) Weight (kg)
MAXGRIP200 200 57 5 60 15
MAXGRIP250 250 57 5 80 22
MAXGRIP300 300 57 6 150 32
MAXGRIP350 350 57 6 170 43
MAXGRIP400 400 57 8 200 56
